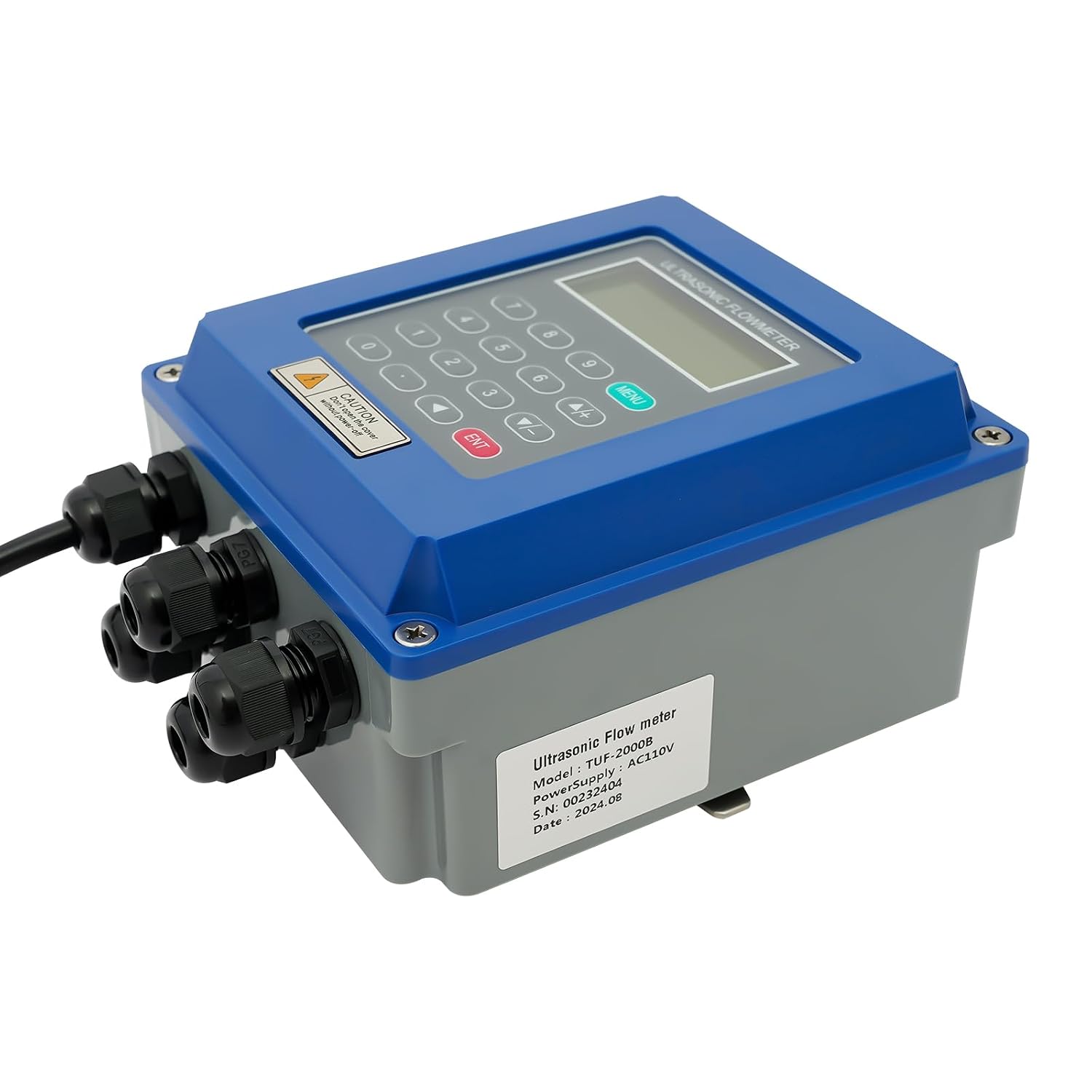

TUF-2000B DN20~DN700mm Portable Ultrasonic Flow Meter,Fixed Clamp Digital Liquid Flowmeter IP67 Protection with TM-1 & TS-2 Transducers

Parameters:Main Unit Protection Level: IP67 Transducer Protection Level:Ip68Main Unit Working Environment: -20~60℃Transducer Working Environment: -30~90℃Humidity: ≤85%Rh Accuracy:≤1%Velocity Range: 0~±10m/s, Bi-Directional MeasurementSuitable Pipe Diameter：TS-2 Ultrasonic Transducers：20-100mmTM-1 Ultrasonic Transducers：50-700mmTemperature: -30~90℃Type Of Liquid:Single Liquid Can Transmit Ultrasound, Such As Water, Sea Water, Sewage, Oil, Alcohol, Etc.Pipe Material:Steel, Stainless Steel, Cast Iron, Copper, PVC, Aluminum, Glass Steel, Etc. Liner Is Allowed.Signal Output:1 Way 4-20ma Output, 1 Way Oct Pulse Output, 1 Way Relay OutputSignal Input: 3 Way 4-20ma Input, Achieve To Heat Measurement By Connecting Pt100 Platinum Resistor.Interface: Rs485, Support ModbusData Storage: SD Card Regularly Store The Pre-Set Results(Without SG Card )Power Supply: DC8~36V Or AC85~264VMultiple Installation Methods: Installation Methods:Wall Mounting And Two Ways Of Din-Rail MountingHost Size: 15.6x15x9.4cm/6.14x5.9x3.7inchWeight: About 2kgPackage Included:1x Tuf-2000B Host2x Steel Belts1x TS-2 Ultrasonic Transducers(20-100mm)1x TM-1 Ultrasonic Transducers(50-700mm)1x 10 Meters Flow Signal Cable1 Set Of Connection Terminal And Screwdriver1x Silicone Sealants1x User Manual

• 【High Quality】The shell is IP67 and IP68 professional grade protective shell, which is dust-proof, water-proof, anti-corrosion, moisture-proof, and has a long service life, so it is suitable for long-term outdoor installation.
• 【HD Display】The ultrasonic flowmeter is equipped with a high definition LCD display, which can be backlit for easy visual reading.
• 【Widely Application】A variety of applications can be accommodated: ultra-pure liquids, portable water, chemicals, raw sewage, reclaimed water, cooling water.
• 【Data storage】There is an inner SD card that regularly stores the pre-set results. Or you can choose not to record them. It’s optional.
• 【Two Installation methods】Wall mounting and Two ways of Din-rail mounting.The various installation methods are very easy, and there is no need to cut off the flow and no pressure loss.
