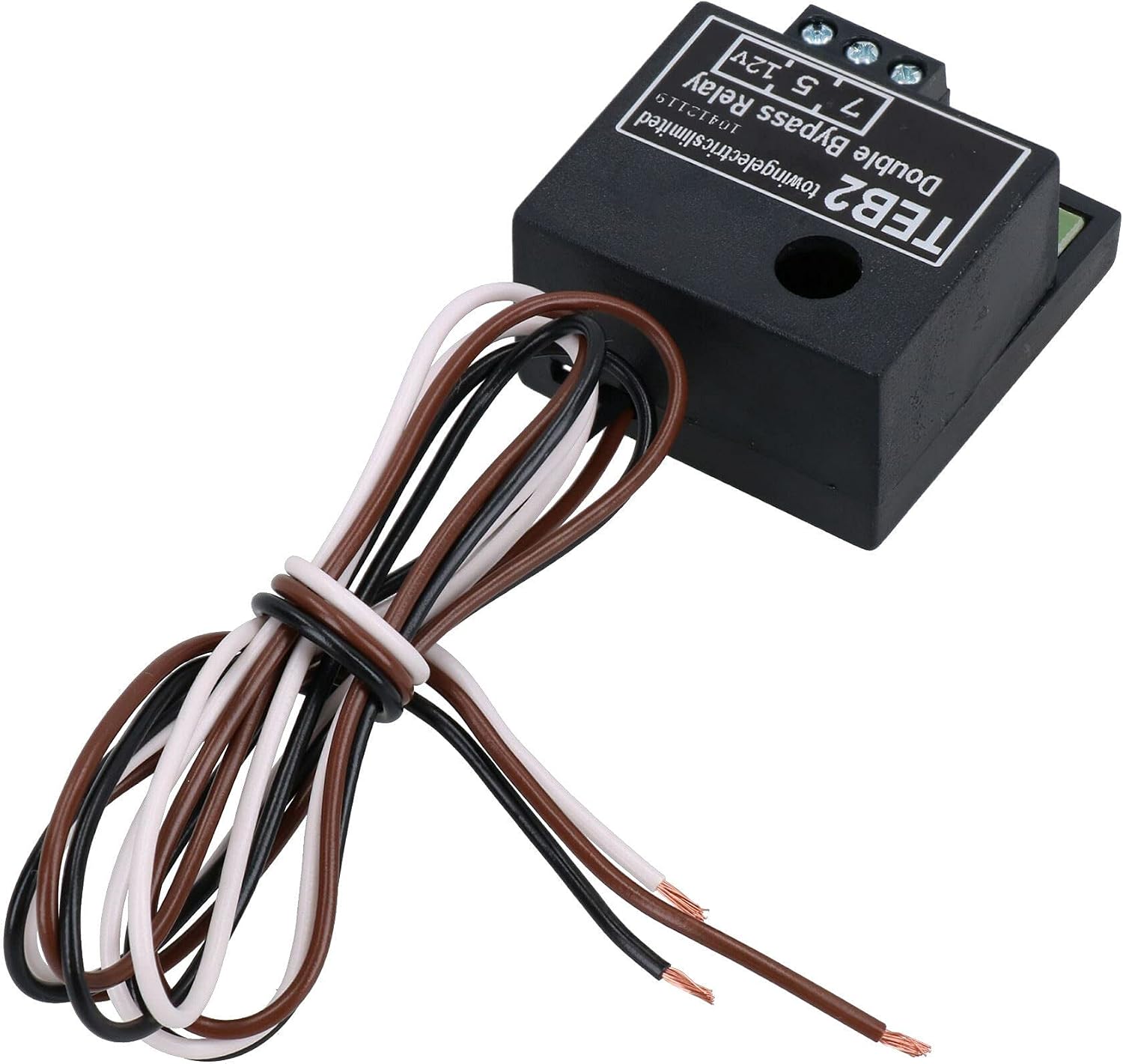

AB Tools Twin 2 Way 12v Bypass Relay Module for High Load Trailer Side Lights
Product details
| Management number | 233916802 | Release Date | 2026/06/27 | List Price | $9.74 | Model Number | 233916802 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
Twin 2 way bypass relay for high load trailer side lights. Used where your trailer has a lot of sidelights, more than can be handled by a standard bypass relay. Supports up to 60w (5A) per sidelight circuit. 12v with 10A total unit load. (5A per sidelight circuit) Draws less than 5mA from the vehicles existing sidelight circuits. This is so little that the vehicle computer will not notice it is there. Simple to Wire Brown wire to right hand vehicle side light. Black wire to left hand vehicle side light. White wire to vehicle earth. 12v terminal to positive battery terminal or fuse box (via suitable fuse) 7 terminal to pin 7 of the trailer socket. 5 terminal to pin 5 of the trailer socket.
- Twin bypass relay.
- Used for trailer with a lot of sidelights.
- Up to 60w (5A) per sidelight circuit.
- 10A total unit load. 5A per side.
- Draws less than 5mA from signal source.
| ASIN | B098KFNMXY |
|---|---|
| Wattage | 60 watts |
| Brand Name | AB Tools |
| Item Weight | 51 Grams |
| Part Number | TR448 |
| Coil Voltage | 12 Volts |
| Manufacturer | AB Tools |
| Mounting Type | Surface Mount |
| Connector Type | Crimp |
| Current Rating | 10 Amps |
| Operation Mode | Manual |
| Maximum Switching Voltage | 12 Volts |
| Minimum Switching Voltage | 12 Volts |
